Product Details
Place of Origin: Shanghai, China
Brand Name: Baiyin Wire & Cable
Certification: CE/RoHS
Model Number: AFR200
Payment & Shipping Terms
Minimum Order Quantity: 2000 meters
Price: $0.59-11.22 / meter
Delivery Time: 10-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000m 7 work days
|
Conductor Material:
|
Copper
|
Insulation Material:
|
PTFE
|
Rated Voltage:
|
250V
|
Temperature:
|
-60~+200°C
|
Application:
|
Auto, Building, Electronics, Heating, Underground, Power
|
|
Conductor Material:
|
Copper
|
|
Insulation Material:
|
PTFE
|
|
Rated Voltage:
|
250V
|
|
Temperature:
|
-60~+200°C
|
|
Application:
|
Auto, Building, Electronics, Heating, Underground, Power
|

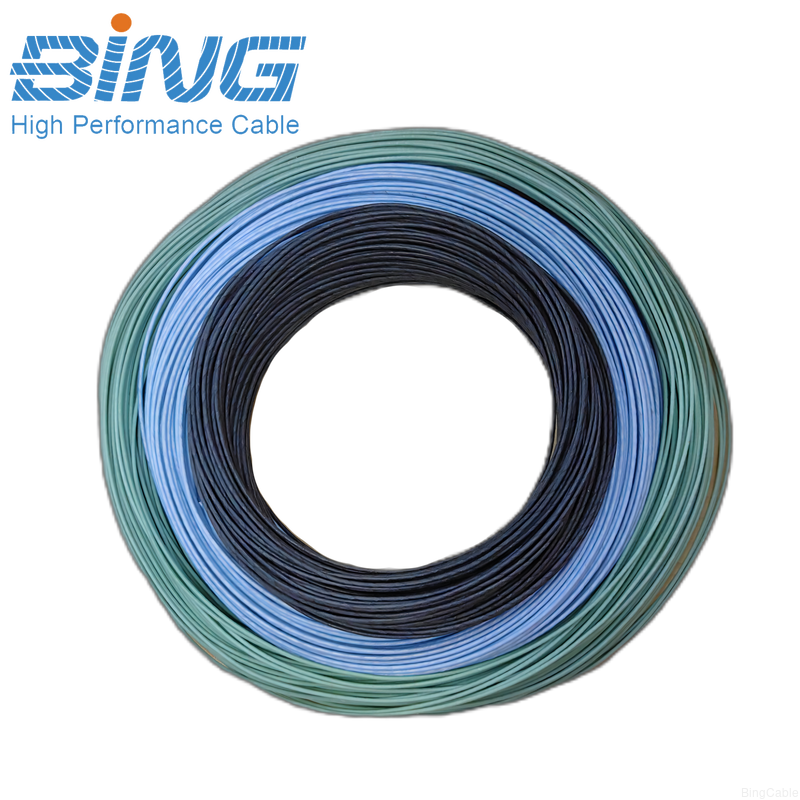

AFR-200 is a small-gauge, thin-wall PTFE wraped hook-up wire engineered for space-constrained and weight-sensitive electronic applications. Built with high-purity copper conductors and PTFE film wrap insulation (compliant with GJB 1640), it delivers exceptional flexibility, vibration resistance, and cost efficiency—ideal for portable instruments, compact devices, and systems where minimal size and weight are critical.
Mili tary & Defense: Ground vehicles, naval vessels, weapons systems, radar equipment.
Instrumentation: Precision measuring devices, sensors, control systems.
Industrial Electronics: High-temperature environments, chemical processing equipment.
Power Systems: Current overload protection circuits, high-reliability power distribution.
Choose our AFR-200 PTFE taped wire for compact, lightweight reliability at a cost-effective price. With GJB 1640 compliance, superior flexibility, and 200°C heat resistance, it’s the ideal solution for space-constrained electronics—delivering full PTFE performance without the premium price tag of higher-temperature alternatives.
Specification
| Model | Cross- sectional area (mm²) |
Conductor No/Dia. (mm) |
Nominal diameter (mm) |
Maximum direct current resistance (ohm/km) |
Weight of the wire (g/m) |
| AFR-200 | 0.014 | 7/0.05 | 0.41 | 1400 | 0.37 |
| AFR-200 | 0.035 | 7/0.08 | 0.45 | 520 | 0.56 |
| AFR-200 | 0.05 | 10/0.08 | 0.5 | 370 | 0.73 |
| AFR-200 | 0.07 | 14/0.08 | 0.56 | 260 | 0.96 |
| AFR-200 | 0.095 | 19/0.08 | 0.61 | 190 | 1.22 |
| AFR-200 | 0.106 | 21/0.08 | 0.64 | 180 | 1.33 |
| AFR-200 | 0.12 | 24/0.08 | 0.66 | 165 | 1.48 |
| AFR-200 | 0.14 | 28/0.08 | 0.75 | 140 | 1.81 |
| AFR-200 | 0.15 | 30/0.08 | 0.78 | 125 | 1.96 |
| AFR-200 | 0.21 | 42/0.08 | 0.88 | 100 | 2.6 |
| AFR-200 | 0.26 | 52/0.08 | 0.95 | 90 | 3.11 |
| AFR-200 | 0.31 | 62/0.08 | 1.01 | 70 | 3.61 |
| AFR-200 | 0.38 | 75/0.08 | 1.08 | 60 | 4.26 |
| AFR-200 | 0.42 | 85/0.08 | 1.13 | 55 | 4.76 |
| AFR-200 | 0.47 | 95/0.08 | 1.17 | 50 | 5.05 |
| AFR-200 | 0.52 | 105/0.08 | 1.23 | 42 | 5.75 |
| AFR-200 | 0.75 | 150/0.08 | 1.41 | 23 | 7.94 |
| AFR-200 | 1 | 210/0.08 | 1.68 | 18 | 10.88 |
| AFR-200 | 1.2 | 240/0.08 | 1.76 | 15 | 12.55 |
|
