Shanghai Bing Wire & Cable Co., Ltd.
sales@shbing.com
86--19370717369
Product Details
Place of Origin: Shanghai, China
Brand Name: Bing Wire & Cable
Certification: CE/RoHS
Model Number: TRX142
Document: TRX142.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1000M
Price: $0.18-1.52 / foot
Delivery Time: 10-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000M 7 work days
|
Type:
|
Triaxial Cable
|
Conductor Material:
|
Silver-plated Copper
|
Insulation:
|
PTFE
|
Inner Shield:
|
Silver Plated Copper Braid
|
Inner Jacket:
|
FEP
|
Outer Shield:
|
Silver Plated Copper Braid
|
Oute Jacket:
|
FEP
|
Impedance:
|
50 Ohm
|
Temperature:
|
-55°C~+200°C
|
|
Type:
|
Triaxial Cable
|
|
Conductor Material:
|
Silver-plated Copper
|
|
Insulation:
|
PTFE
|
|
Inner Shield:
|
Silver Plated Copper Braid
|
|
Inner Jacket:
|
FEP
|
|
Outer Shield:
|
Silver Plated Copper Braid
|
|
Oute Jacket:
|
FEP
|
|
Impedance:
|
50 Ohm
|
|
Temperature:
|
-55°C~+200°C
|

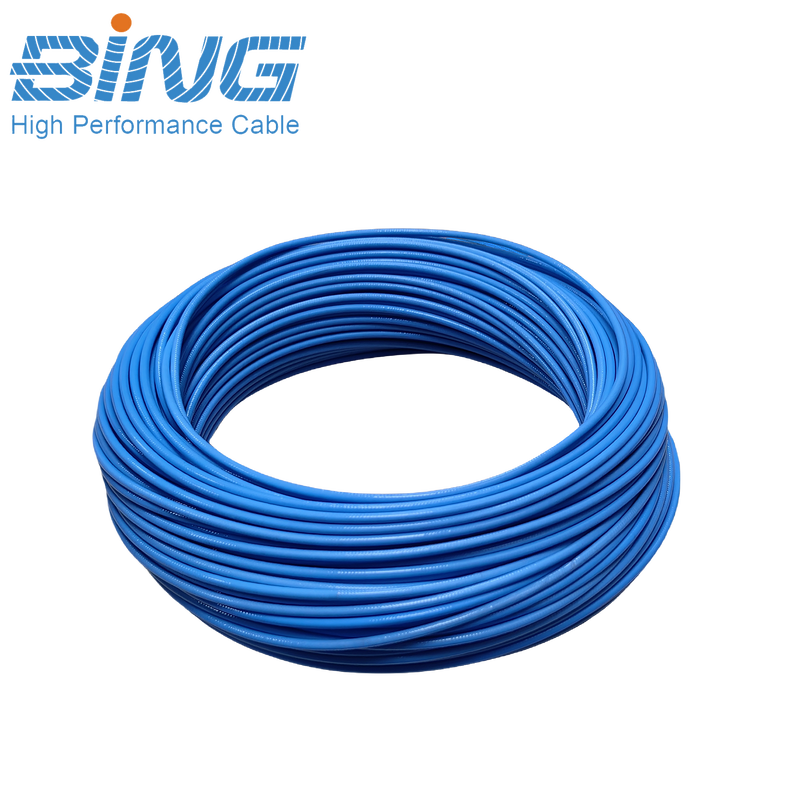

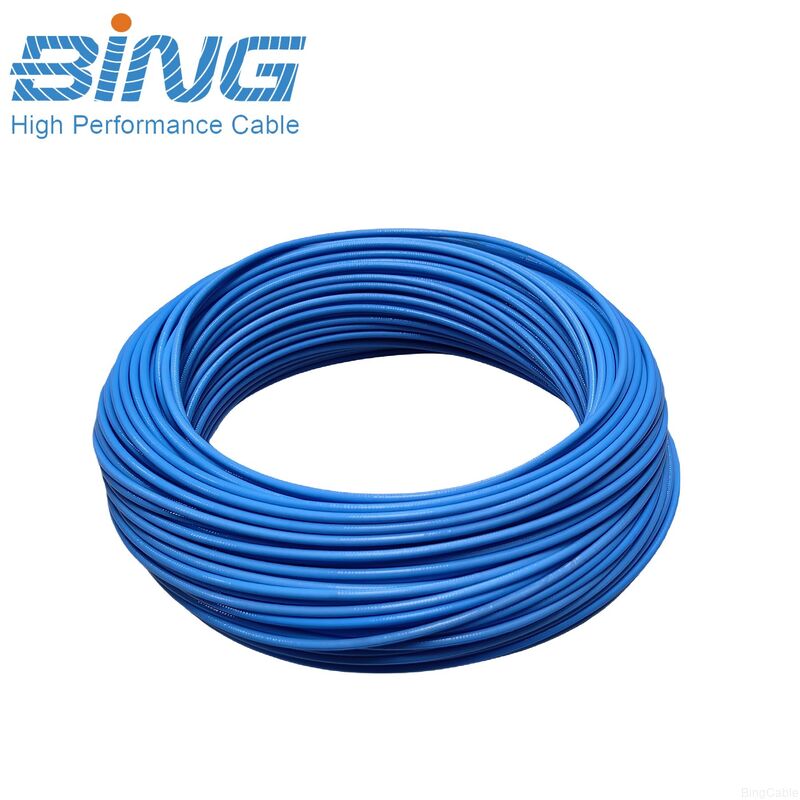

The TRX-142 triaxial cable is a high-performance 50 Ohm triaxial cable engineered for demanding applications requiring maximum signal integrity and superior electromagnetic interference (EMI) protection. Operating over a broad temperature range from -55°C to +200°C with frequency capability up to 8 GHz, the TRX-142 triaxial coax ensures clean, accurate signal transmission in the most electrically noisy environments.
1.Exactly Signal Accuracy:True triaxial "guard" conductor cancels leakage and rejects EMI—so your data is fact, not fiction.
2.Lower Cost of Ownership:8GHz bandwidth, -55°C to +200°C range, and rugged FEP jacket mean one cable for multiple jobs, fewer failures, and long-term savings.
3.Mission-Critical Reliability:MIL-DTL-17 compliant ,100% confidence for aerospace, defense, and medical applications.
| Material | Diameter(mm) | |
|---|---|---|
| 1. Inner Conductor | Sliver-plated Copper Wire | 0.94 |
| 2. Insulation | PTFE | 3.00 |
| 3. Inner Shield | Sliver-plated Copper Wire Braid | 3.50 |
| 4. Inner Jacket | FEP | 4.22 |
| 5. Outer Shield | Sliver-plated Copper Wire Braid | 4.72 |
| 6. Outer Jacket | FEP | 5.46 |
| Capacitance(pF/m) | 96.45 |
|---|---|
| Impedance(ohm) | 50 |
| Velocity(％) | 70 |
| Minimum Bending Radius(mm) | 28 |
| Maximum Voltage(VMS) | 1900 |
| Maximum Frequency(MHz) | 8000 |
| Temperature Range(℃) | -55～+200 |
| Frequency(MHz) | Attenuation(dB/100m) |
|---|---|
| 100 | 12.5 |
| 400 | 25.6 |
| 1000 | 42.0 |
| 3000 | 78.1 |
| 5000 | 105.0 |
| 1.Are you a manufacturer or a trading company? | ||||
| A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005. | ||||
| 2.What’s your company MOQ? | ||||
| A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options. | ||||
| 3.Can I get the samples? | ||||
| A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order. | ||||
| 4.Does your company accept customization? | ||||
| A: Yes, we provide both OEM and ODM services to meet your specific requirements. | ||||
| 5.How can I get the right price? | ||||
| A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly. | ||||
| 6.What services can we provide? | ||||
| A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs. | ||||
| 7.How long will the delivery take? | ||||
| A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity. | ||||
| 8.How do you solve after sale service? | ||||
| A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction. |
