Model Number: RF1.13
Document: RF1.13 ，50Ω.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: $3.22-40.68 / meter
Delivery Time: 10-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000m 7 work days
|
Type:
|
Flexible Minature Coaxial Cable
|
Inner Conductor:
|
Silver Plated Copper
|
Insulation:
|
FEP/PFA
|
Shielding:
|
Sliver Plated Copper
|
Jacket:
|
FEP/PFA
|
Impedance:
|
50 Ohm
|
Voltage Rated:
|
500V
|
Temperature Range:
|
-55°C ~ +200°C
|
Application:
|
Heating
|
Color:
|
Customized Color
|
Packing:
|
As Requirement
|
|
Type:
|
Flexible Minature Coaxial Cable
|
|
Inner Conductor:
|
Silver Plated Copper
|
|
Insulation:
|
FEP/PFA
|
|
Shielding:
|
Sliver Plated Copper
|
|
Jacket:
|
FEP/PFA
|
|
Impedance:
|
50 Ohm
|
|
Voltage Rated:
|
500V
|
|
Temperature Range:
|
-55°C ~ +200°C
|
|
Application:
|
Heating
|
|
Color:
|
Customized Color
|
|
Packing:
|
As Requirement
|

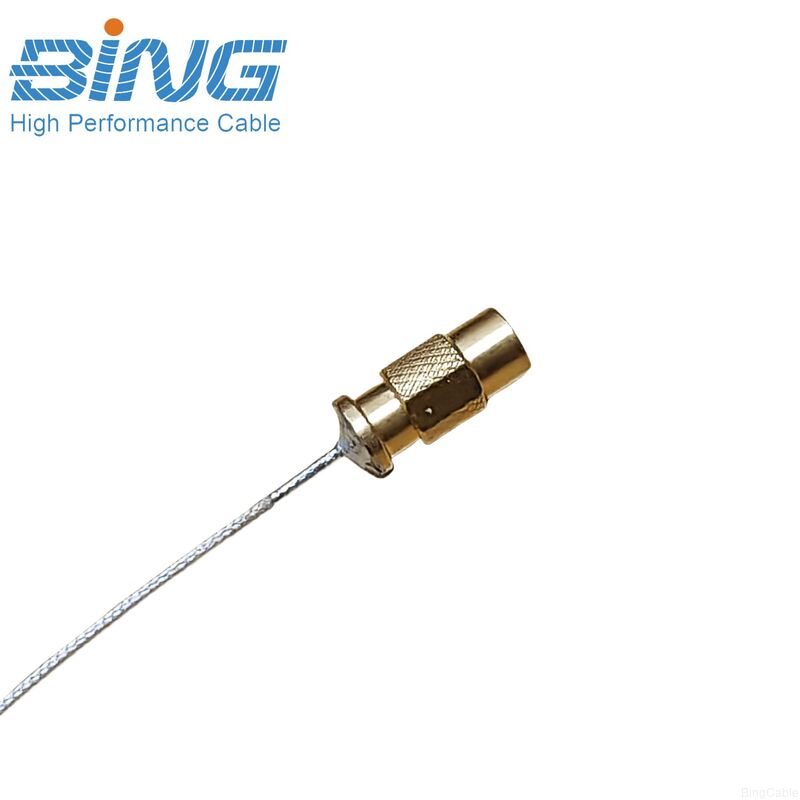

Our RF1.13mm ultra-fine coaxial cable is engineered to deliver exceptional signal integrity in compact electronic applications. Designed with precision FEP insulation and a robust construction, this cable operates reliably across a wide temperature range of -55°C to +180°C, while maintaining a consistent 50ohm impedance for optimal RF performance. Its ultra-thin profile makes it ideal for space-constrained designs where traditional bulkier cables cannot be used.
Excellent High-Frequency Performance: With a characteristic impedance of 50 ± 2 Ohms, it reliably supports frequencies up to 6 GHz, covering all major wireless standards like Wi-Fi 6/6E, Bluetooth, GPS, and 4G/5G cellular bands.
Superior Flexibility: The RF1.13 miniature coax cable features a stranded silver-plated copper conductor and a flexible FEP insulation and jacket, allowing for a tight bend radius (as low as 4mm). This makes routing around components and through hinges in devices like laptops and routers simple and reliable.
Low Signal Loss (Attenuation): Despite its small size, RF1.13 miniature coax offers optimized attenuation for its class. For example, typical attenuation at 2.4 GHz is around 3.0 dB/m, and at 5.8 GHz, it is approximately 5.1 dB/m, ensuring signal integrity over short internal distances.
Industrial: Mini sensors, drone communications, collaborative robots
Aerospace: Small satellite parts, lightweight avionics systems
| Construction Specification | ||
| Inner Conductor | Material | Silver Plated Copper Wire |
| Construction(No./mm) | 7/0.08 | |
| Nominal Diameter(mm) | 0.24 | |
| Insulation | Material | FEP |
| Nominal Insulation Thickness(mm) | 0.22 | |
| Min. Insulation Thickness(mm) | 0.20 | |
| Nominal Diameter(mm) | 0.68 | |
| Color | True Color | |
| Outer Conductor | Material | Silver Plated Copper Wire/Tinned Copper wire |
| Construction | 0.05mm Wire Single Braided | |
| Shielding Density(%) | 95 | |
| Jacket | Material | FEP |
| Nominal Thickness(mm) | 0.12 | |
| Min. Thickness(mm) | 0.10 | |
| Nominal Outer Diameter(mm) | 1.13 | |
| Color | Red/Yellow/Blue/White/Black/Grey/Dual Color..ect | |
| Electrical Characteristics | ||
| Impedance | 50ohm | |
| Insulation Voltage | 500V | |
| Mechanical Performance Parameters | ||
| Operating Temp.(℃) | -55~+180℃ | |
| RoHS Certificate | Compliant | |
