Product Details
Place of Origin: Shanghai, China
Brand Name: Bing Wire & Cable
Certification: CE/RoHS
Model Number: HAJ520
Document: HAJ520E-%77.en.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: $3.58-7.13 / meter
Delivery Time: 10-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000m 7 work days
|
Type:
|
Microwave Cable Assembly
|
Inner Conductor:
|
Silver Plated Copper
|
Insulation:
|
LD PTFE
|
Jacket:
|
TPU
|
Temperature Range:
|
-60°C~180°C
|
Velocity Of Propagation:
|
70%
|
Application:
|
Medical Application
|
Color:
|
Customized Color
|
|
Type:
|
Microwave Cable Assembly
|
|
Inner Conductor:
|
Silver Plated Copper
|
|
Insulation:
|
LD PTFE
|
|
Jacket:
|
TPU
|
|
Temperature Range:
|
-60°C~180°C
|
|
Velocity Of Propagation:
|
70%
|
|
Application:
|
Medical Application
|
|
Color:
|
Customized Color
|

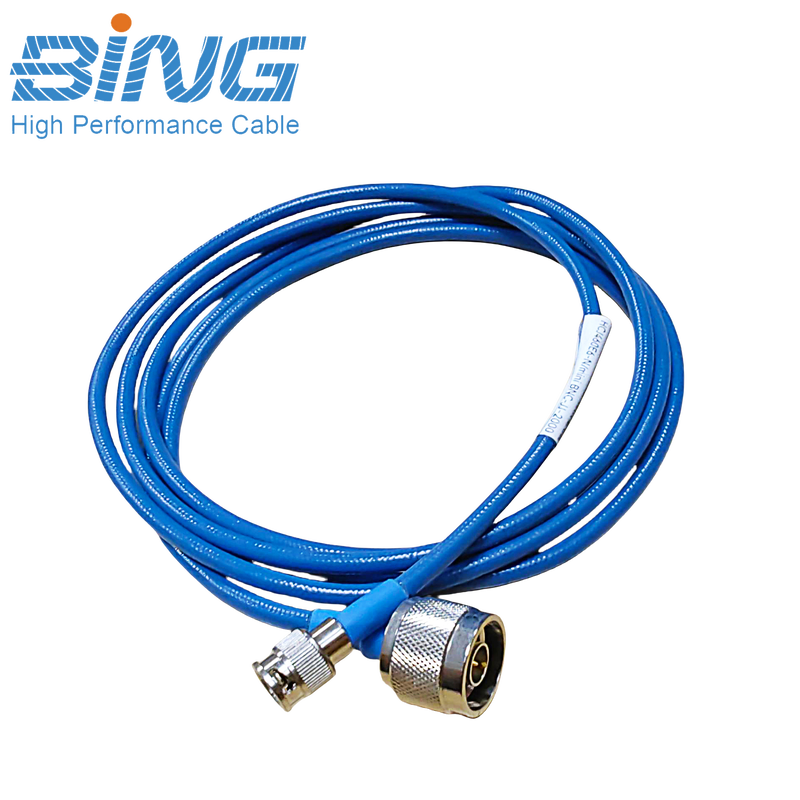

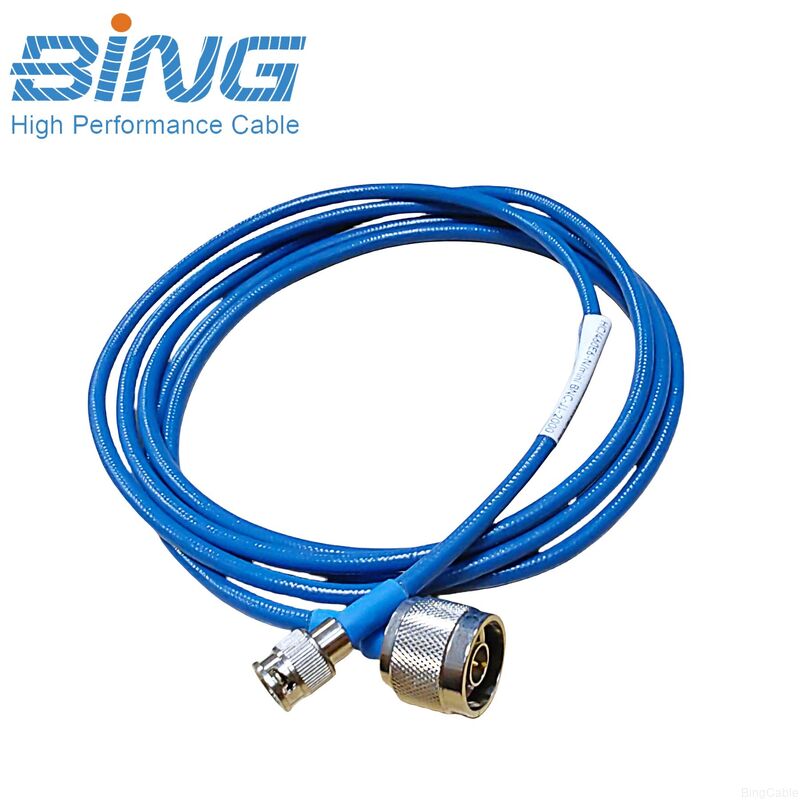

HAJ520 is an ultra-flexible high-strength transmission cable designed for microwave ablation systems. It operates across 0–2.45 GHz and handles 100W peak power. With a 5.20mm diameter and thermoplastic elastomer outer jacket, the cable features a smooth surface that is easy to clean and sterilize.
Ø5.20mm Lightweight Diameter – Thermoplastic elastomer outer jacket for smooth surface and easy sterilization
VSWR < 1.20 (0 – 2.45 GHz) – Excellent impedance matching for stable performance
Attenuation 0.55 dB/m @ 2.45 GHz – Efficient power transmission
100W Peak Power Handling – Cable temperature ≤ 48°C under full load
96h Salt Spray Test Passed – Reliable in harsh environments
Multiple Connector Options – N / BNC / miniBNC / MCX / RPMCX / SMA
HAJ520 is used as the output cable between the microwave generator and the ablation needle. Its ultra‑flexible design makes it ideal for precise procedures in tight spaces, such as CT‑guided interventions. It also performs well in multi‑channel systems, where multiple cables need to be managed easily. The smooth surface speeds up cleaning and sterilization, making it a good choice for busy outpatient settings.
Ultra-Flexible Construction – Smooth routing and repeated bending resistance for extended lifespan
High-Precision 50Ω Matching – Minimized reflection for a more stable system
Superior Power Transmission Efficiency – Cooler operation, comfortable to handle
Strong Compatibility – Adapts to mainstream generators and microwave antennas, ideal for high-power applications
Specification
Physical Properties
| Item | Material | Diameters (mm) |
|---|---|---|
| Inner Conductor | Silver Plated Copper | 1.26 |
| Insulation | LD PTFE | ----- |
| Outer Conductor | Aluminum/Polyester composite foil silver/Tin plated copper wire braided | 4.00 |
| Jacket | TPU,Color(Upon to request) | 5.20 |
Electrical Properties
| Capacitance (pF/m) | 87 |
| Impedance (Ohms) | 50 |
| Velocity of Propagation (%) | 77 |
| Max Voltage (Vrms) | 2000 |
| Max Frequency (MHz) | 2450 |
| Bend Radius (mm) | 16 |
| Temperature Range (℃) | -40~+80 |
Attenuation
| Frequency (MHz) | Attenuation (dB/m) | Power(W) |
| 2450 | 0.60 | 120 |
|
