Product Details
Place of Origin: Shanghai, China
Brand Name: Bing Wire & Cable
Certification: CE/RoHS
Model Number: TRX178
Document: TRX178.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1000M
Price: $0.18-1.52 /M
Delivery Time: 10-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000M 7 work days
|
Type:
|
Triaxial Cable
|
Conductor Material:
|
Silver-plated Copper
|
Insulation:
|
PTFE
|
Inner Shiled:
|
Silver Plated Copper Braid
|
Inner Jacket:
|
FEP
|
Outer Shield:
|
Silver Plated Copper Braid
|
Outer Jacket:
|
FEP
|
Impedance:
|
50 Ohm
|
Temperature:
|
-55°C~+200°C
|
|
Type:
|
Triaxial Cable
|
|
Conductor Material:
|
Silver-plated Copper
|
|
Insulation:
|
PTFE
|
|
Inner Shiled:
|
Silver Plated Copper Braid
|
|
Inner Jacket:
|
FEP
|
|
Outer Shield:
|
Silver Plated Copper Braid
|
|
Outer Jacket:
|
FEP
|
|
Impedance:
|
50 Ohm
|
|
Temperature:
|
-55°C~+200°C
|

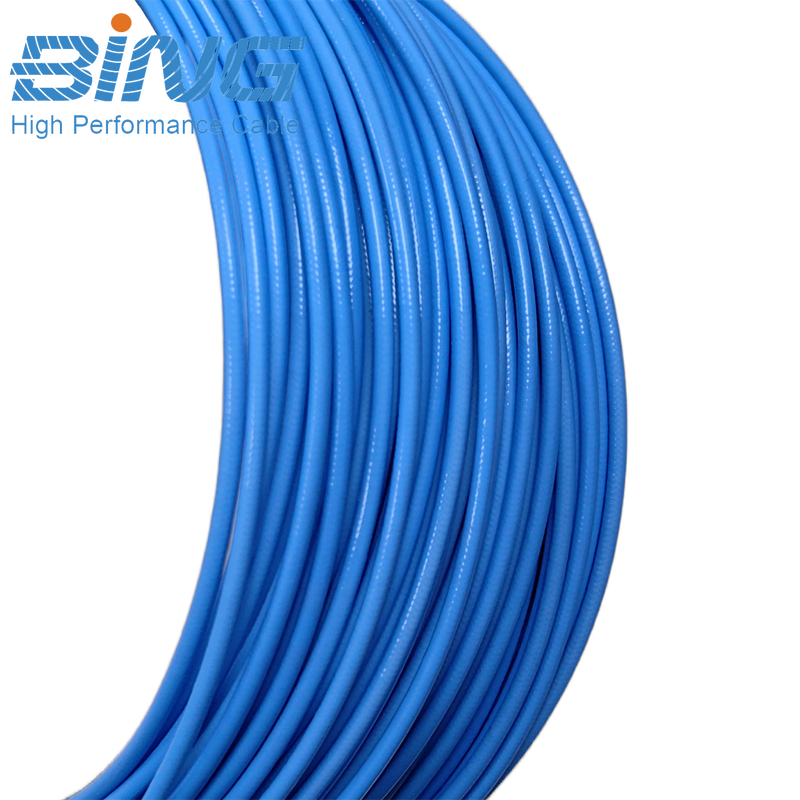

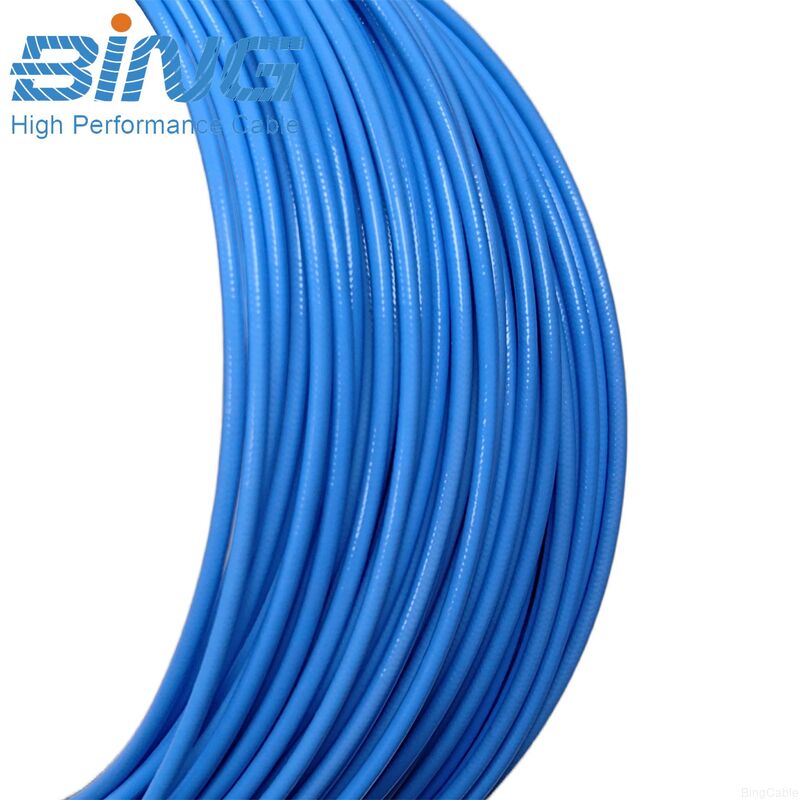

The TRX-178 coaxial cable is a high-performance 50 Ohm triaxial cable engineered for demanding applications requiring maximum signal integrity and superior electromagnetic interference (EMI) protection. Built with a precision PTFE dielectric and featuring double silver-plated copper braid shielding, this 2.95mm diameter cable provides a "triax" construction—an additional layer of insulation and a second conductive sheath beyond standard coaxial cable .This triple-layer design delivers exceptional shielding effectiveness, making it the preferred choice for high-precision test and measurement, aerospace, and broadcast applications where noise rejection is critical.
50 Ohm Triaxial Cable – Precision impedance matching for RF, telecommunications, and high-frequency test applications.
Dual Silver-Plated Copper Braids – Inner and outer shields provide 100% coverage against electromagnetic interference.
3 GHz Frequency Rating – Broad bandwidth supports high-speed data, video, and RF signal transmission.
PTFE Insulated Cable – Stable electrical performance with low loss from -55°C to +200°C operating range.
FEP Jacketed Cable – UV-resistant, chemical-resistant, and low-smoke jacket for versatile indoor/outdoor use.
Flexible Stranded Conductor – Silver-plated copper-covered steel stranding combines flexibility with durability.
High-Density Shielding – Exceptional shielding effectiveness for noise-sensitive applications.
Aerospace Wire and Cable – Avionics video displays and flight instrumentation requiring interference protection.
Broadcast Video Cables – HD and 4K video transmission in studio and production environments.
Medical Equipment Cables – MRI, endoscopy, and diagnostic imaging interconnect solutions.
Mili tary Communication Cables – MIL-grade performance for secure data and video links.
RF and Microwave Cables – 3 GHz transmission lines for telecommunications and antenna systems.
Industrial Sensor Cables – Reliable data acquisition in electrically noisy factory environments.
Laboratory Instrumentation – Low-current measurement and high-impedance test configurations.
1.Exactly Signal Accuracy:True triaxial "guard" conductor cancels leakage and rejects EMI—so your data is fact, not fiction.
2.Lower Cost of Ownership:3GHz bandwidth, -55°C to +200°C range, and rugged FEP jacket mean one cable for multiple jobs, fewer failures, and long-term savings.
3.Mission-Critical Reliability:MIL-DTL-17 compliant ,100% confidence for aerospace, defense, and medical applications.
| Material | Diameter(mm) | |
|---|---|---|
| 1. Inner Conductor | Sliver-plated Copper Wire | 7*0.102 |
| 2. Insulation | PTFE | 0.86 |
| 3. Inner Shield | Sliver-plated Copper Wire Braid | 1.26 |
| 4. Inner Jacket | FEP | 1.88 |
| 5. Outer Shield | Sliver-plated Copper Wire Braid | 2.29 |
| 6. Outer Jacket | FEP | 2.95 |
| Capacitance(pF/m) | 96.45 |
|---|---|
| Impedance(ohm) | 50 |
| Velocity(％) | 70 |
| Minimum Bending Radius(mm) | 15 |
| Maximum Voltage(VMS) | 1000 |
| Maximum Frequency(MHz) | 3000 |
| Temperature Range(℃) | -55～+200 |
| Frequency(MHz) | Attenuation(dB/100m) |
|---|---|
| 100 | 45.3 |
| 400 | 91.2 |
| 1000 | 145.7 |
| 3000 | 257.2 |
