Product Details
Place of Origin: Shanghai, China
Brand Name: Bing Wire & Cable
Certification: ISO, RoHS, SGS

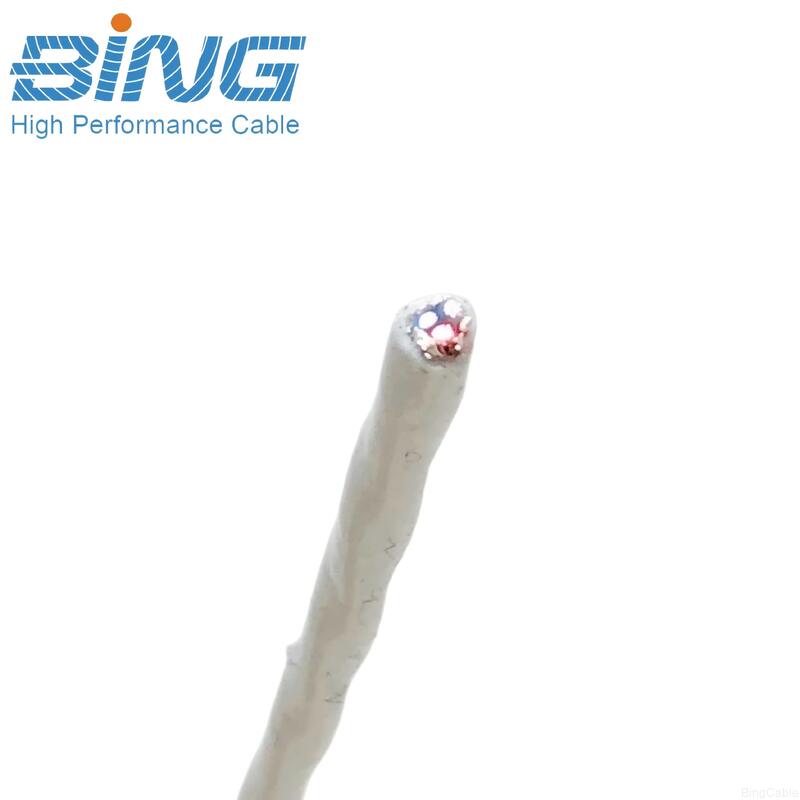

Model Number: M27500 WR
Payment & Shipping Terms
Minimum Order Quantity: 1 ft
Price: Negotiable
Delivery Time: 7-15 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000ft 7days
|
Cable Family:
|
M27500 Multi-Core Cable
|
Conductor Material:
|
Nickel-Plated Copper
|
Conductor Type:
|
Stranded
|
Inner Insulation:
|
PTFE/polyimide/PTFE Tape
|
Outer Insulation:
|
PTFE Tape
|
Shield:
|
Nickel- Or Silver-Plated Copper Braid
|
Inner Jacket:
|
FEP/polyimide Tape
|
Outer Jacket:
|
PTFE Tape
|
Voltage Rating:
|
600 Volts AC
|
Operating Temp:
|
-55°C ~ +260°C
|
|
Cable Family:
|
M27500 Multi-Core Cable
|
|
Conductor Material:
|
Nickel-Plated Copper
|
|
Conductor Type:
|
Stranded
|
|
Inner Insulation:
|
PTFE/polyimide/PTFE Tape
|
|
Outer Insulation:
|
PTFE Tape
|
|
Shield:
|
Nickel- Or Silver-Plated Copper Braid
|
|
Inner Jacket:
|
FEP/polyimide Tape
|
|
Outer Jacket:
|
PTFE Tape
|
|
Voltage Rating:
|
600 Volts AC
|
|
Operating Temp:
|
-55°C ~ +260°C
|
| Standard Reference | MIL-DTL-22759/92 (Nickel-plated) |
| Conductor Material | Nickel-Plated Copper |
| Insulation | PTFE/Polyimide/PTFE Composite Tape |
| Shielding | Nickel-Plated Copper Braid (85% Coverage) |
| Jacket Material | FEP/Polyimide with PTFE Tape |
| Temp Rating | -55°C ~ +260°C |
| Voltage Rating | 600V |
Q: What does the "seamless wrap" insulation mean?
A: The PTFE/polyimide/PTFE composite tape is wrapped around the conductor, creating a thin, lightweight, and tough insulation layer that is lighter than standard extruded PTFE.
Q: What is the continuous temperature rating of M27500 WR cable?
A: -55°C to +260°C. This makes it suitable for engine nacelles and high-heat zones where standard cables are not rated.
Q: Is the cable resistant to aviation fluids?
A: Yes, the FEP/polyimide/PTFE jacket construction provides excellent resistance to hydraulic fluids, jet fuels, oils, and solvents.
Q: What is the difference between M27500 WR and WP?
A: WR uses nickel-plated copper conductors rated for 260°C continuous. WP uses silver-plated copper conductors rated for 200°C. WR is designed for hotter environments where WP cannot survive.
Q: What mili-tary standard does this W27500 WR cable meet?
A: MIL-DTL-22759/92, the specification for high-temperature, nickel-plated copper conductor hook-up wire.
Q: Can these M27500 WR cables be customized?
A: Yes. We offer customization options including core counts, specific cut-to-length services, custom color coding for easy identification during installation, and specific shielding requirements.
