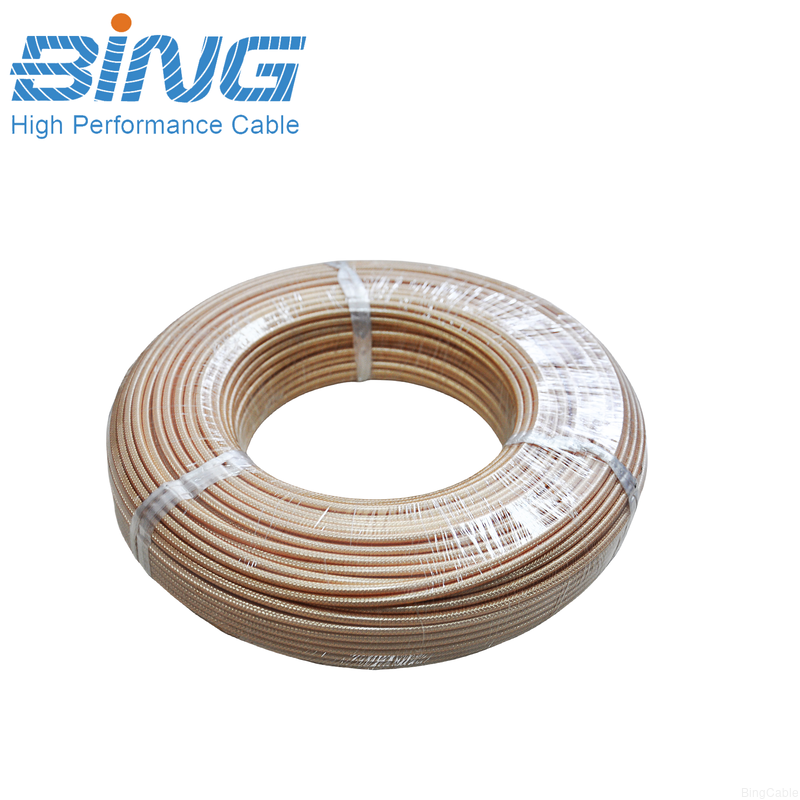

50ohm RG393 Flexible High-Power Microwave Coaxial Cable for RF signal applications

M17/127-RG393 | 50Ω | 11 GHz | 4500W @ 0.1 GHz | 5000 VRMS | -55°C to +200°C

The RG393 is a flexible high-power 50Ω microwave coaxial cable engineered for systems that must deliver high RF power without sacrificing routing flexibility. With a 2.39 mm stranded silver-plated copper inner conductor, a double braid of silver-plated copper wire, and an extruded FEP jacket, it delivers up to 4500 W at 0.1 GHz, 1100 W at 1 GHz, and reliable performance up to 11 GHz. Weighing just 260 g/m and featuring a 9.9 mm outer diameter, the RG393 is significantly lighter and more flexible than traditional rigid high-power microwave cables. Its stranded conductor resists vibration and flex fatigue, making it ideal for shipboard radar, airborne microwave links, and mobile high-power systems where routing flexibility and maintenance access are critical.

• Stranded Silver-Plated Copper Inner Conductor – Flexible, vibration-resistant, and low loss at high frequencies.

• Double Braid of Silver-Plated Copper Wire – Low transfer impedance and excellent shielding effectiveness.

• Extruded FEP Jacket – Resistant to chemicals, oils, moisture; rated to +200°C.

• 11 GHz Maximum Frequency – Covers X-band, Ku-band, and many microwave applications.

• 4500 W Power Handling at 0.1 GHz – High power density for a flexible cable.

• 5000 VRMS Maximum Voltage – High-voltage capability for transmitters and radar systems.

• 260 g/m Lightweight – Significantly lighter than glass fiber braided high-power cables.

• 9.9 mm Compact Outer Diameter – Fits into tight spaces and high-density layouts.

• Flexible and Maintenance-Friendly – Stranded conductor and FEP jacket allow easier routing and replacement.

• MIL-DTL-17 Qualified – M17/127-RG393 reliability for defense, aerospace, and industrial systems.

• RoHS Compliant – Environmentally responsible materials.

• Flexible High-Power Performance – The stranded conductor and FEP jacket make the RG393 significantly more flexible than glass fiber braided high-power cables, while still delivering up to 4500 W at 0.1 GHz.

• Stranded Conductor for Vibration Resistance – Ideal for shipboard, airborne, and mobile systems where vibration and flex fatigue are concerns.

• Double Silver-Plated Copper Braid – Low transfer impedance and excellent shielding effectiveness for microwave frequencies and EMI-sensitive environments.

• 11 GHz Bandwidth – Covers X-band, Ku-band, and many radar and communication applications.

• 5000 VRMS Voltage Rating – High-voltage capability for transmitters and radar systems.

• 200 g/m Lightweight – Significantly lighter than traditional high-power microwave cables, reducing load on aircraft and shipboard platforms.

• Extruded FEP Jacket – Chemical resistance, low friction, and 200°C continuous operation.

• MIL-DTL-17 Compliance – Manufactured to M17/127-RG393 for defense, aerospace, and industrial reliability.

• RoHS Compliant – Environmentally responsible materials.

• Shipboard Radar Systems – Flexible, vibration-resistant feeds for phased array and rotating radar.

• Airborne Microwave Links – Lightweight, high-power interconnects for aircraft and UAVs.

• Mobile High-Power Systems – Ground-based mobile radar and communication shelters.

• Phased Array Antenna Feeders – Stable phase and low loss up to 11 GHz.

• Electronic Warfare Systems – High-power microwave transmission in EMI-sensitive environments.

• Test & Measurement – High-power microwave test benches requiring flexible routing.

• Satellite Communication Terminals – Ku-band and X-band feeds where flexibility and power handling are required.
