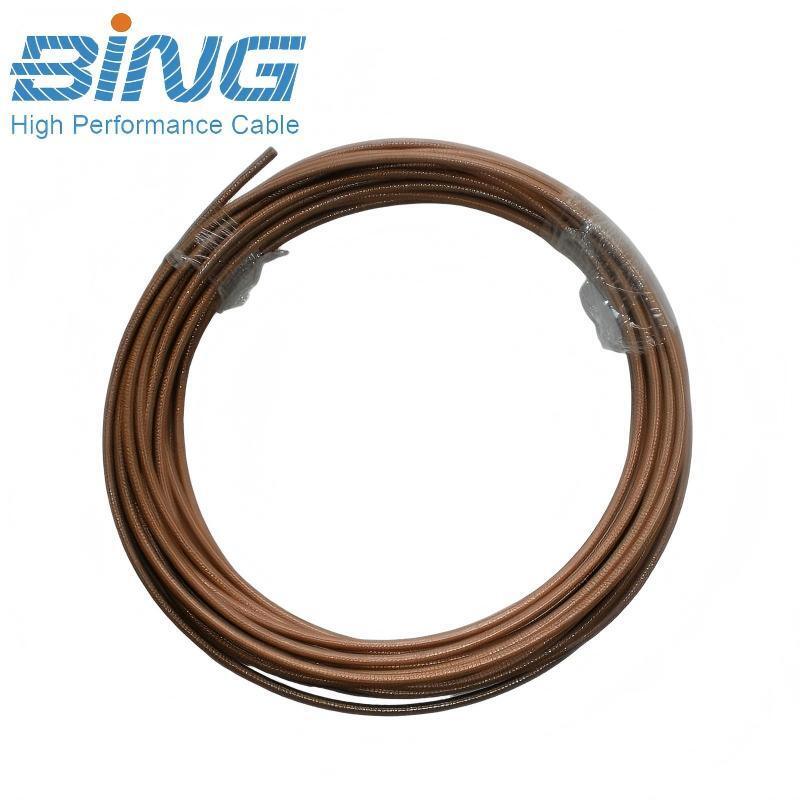

RG393 Coaxial Cable PTFE Insulation Shielded M17 Compliant Coax for RF Transmission

Product Description

RG393 is a MIL-DTL-17 compliant 50 Ohm coaxial cable featuring a silver-plated copper clad steel stranded conductor, PTFE dielectric, and double silver-plated copper braid shielding. Designed for high-power handling and ultra-low loss performance up to 6 GHz, this cable operates reliably from -55°C to +200°C, making it ideal for demanding aerospace, defense, and high-frequency test applications.

Key Features

• Double silver-plated copper braid shielding for superior EMI/RFI protection
• PTFE dielectric ensures stable performance across extreme temperatures
• Stranded silver-plated copper clad steel conductor (7×0.792mm) for flexibility and high conductivity
• MIL-DTL-17 compliant for mission-critical applications
• FEP jacket offers UV resistance, chemical resistance, and low smoke properties
• High voltage rating up to 2500VMS
• Excellent attenuation stability and crush resistance

Specifications

Physical Properties

Electrical Properties

Attenuation

Applications

• Aerospace & defense – MIL-spec compliant for mission-critical systems
• High-power RF transmission – Handles up to 2500V for broadcast and radar
• Laboratory testing – Ultra-low loss for precision measurements
• Telecom base stations – Reliable performance in outdoor infrastructure
• Satellite communications – Low attenuation for long-distance signal integrity
• Defense tactical systems – Crush-resistant design for field deployment
• Antenna systems – Efficient RF transmission with minimal loss
• Industrial automation – Withstands harsh environments and chemicals

FAQ

Q: What is the maximum frequency for RG393?
A: RG393 is rated for use up to 11 GHz, with excellent attenuation stability across the frequency range.

Q: What is the difference between RG393 and RG316?
A: RG393 is a larger diameter cable (9.9mm vs 2.8mm) designed for higher power handling and lower loss. It features a heavier 7×0.80mm conductor and can handle up to 2500V compared to RG316's 1200V.

Q: What connectors work with RG393?
A: RG393 accepts connectors designed for 0.390-inch diameter cable, including N-Type, TNC, SC, and HN types. Custom assemblies available.

Q: Can RG393 be used outdoors?
A: Yes, the FEP jacket is UV resistant and weatherproof with excellent resistance to fuels, chemicals, and oils.

Q: What is the minimum order quantity?
A: We sell by the meter/foot with no minimum order quantity. Custom lengths available.
