Name: 50 Ohm True-Flex316 Spiral Strip Coax FEP Jacket for Equipment Test
Brand: Shanghai Bing Wire & Cable Co., Ltd.
SKU: True-Flex316
Price: 5.78 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: Bing Wire & Cable

Certification: CE/RoHS

Model Number: True-Flex316

Document: True-Flex316.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Price: $2.78-10.52 / meter

Delivery Time: 10-15 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 2000m 7 work days

Get Best Price

Chat now

Product Details

Product Description

Highlight:

Type:	Spiral Strip Coax	Inner Conductor:	Silver Plated Copper
Insulation Material:	Solid PTFE	Inner Shield:	Spiral Silver Plated Copper
Outer Braid:	Round Silver Plated Copper	Jacket:	FEP
Impedance:	50 Ohm	Temperature Range:	-55 °C~ +105 ℃
Velocity Of Propagation:	70%	Application:	Communication And GPS

Type:	Spiral Strip Coax
Inner Conductor:	Silver Plated Copper
Insulation Material:	Solid PTFE
Inner Shield:	Spiral Silver Plated Copper
Outer Braid:	Round Silver Plated Copper
Jacket:	FEP
Impedance:	50 Ohm
Temperature Range:	-55 °C~ +105 ℃
Velocity Of Propagation:	70%
Application:	Communication And GPS

50 Ohm True-Flex316 Spiral Strip Coax FEP Jacket for Equipment Test

Product Description

True Flex 316 spiral strip coax is a high-performance 50 ohm flexible coaxial cable engineered for applications requiring reliable signal transmission up to 18 GHz. Combining a stranded silver‑plated copper conductor, dual-layer spiral + braid shielding, and a rugged FEP jacket, this cable delivers exceptional flexibility, durability, and electrical stability.Designed as a direct form and function‑equivalent to the industry‑standard Harbour SFL405‑105FLEX, True Flex 316 offers identical electrical parameters while featuring a chemical‑resistant FEP jacket for enhanced performance in harsh environments.

Core Advantages

Stranded Silver‑Plated Copper Center Conductor – Provides excellent flexibility and conductivity, ideal for repeated flexing and tight installations.
Dual‑Layer Shielding – Spiral silver‑plated copper strip plus round silver‑plated copper braid ensures > –110 dB shielding effectiveness (typical).
FEP Jacket – Chemically inert, low‑friction, and rated for continuous operation from –55°C to +105°C; resists solvents, oils, and abrasion.
Precision 50Ω Impedance – Maintains low VSWR across the entire DC‑18 GHz frequency range.
Excellent Phase Stability – Reliable performance under flexure, suitable for test and measurement applications.
Drop‑in Replacement for SFL405 – Identical mechanical dimensions, electrical specs, and attenuation profile as Harbour SFL405‑105FLEX.

Application Scenarios

Defense Electronics: Phase stability, high reliability, wide temperature range
Test and Measurement: Low VSWR, repeatable performance after flexing, connector compatibility
Wireless Communications: Low loss, high frequency support (5G/mmWave ready)
Medical Electronics: FEP jacket options, flexibility, small bend radius,flexible, low loss,
PIM Test Cables: Low passive intermodulation, high shielding effectiveness

Why to Choose Our Spiral Strip Coax?

Engineers and system designers choose True Flex 316 when they need a flexible microwave cable that delivers the electrical performance of semi-rigid construction—featuring low loss, low VSWR, and > –110 dB shielding effectiveness—combined with the mechanical flexibility required for tight bends and repeated flexing. Built with a stranded silver-plated copper conductor and dual-layer spiral + braid shielding, it ensures reliable signal integrity up to 18 GHz while the chemical-resistant FEP jacket withstands harsh environments from –55°C to +105°C. With industry-standard 2.92 mm dimensions, it serves as a direct drop-in replacement for Harbour SFL405-105FLEX, offering wide compatibility with off-the-shelf connectors such as SMA and 2.92mm. Proven reliability in defense, aerospace, and test & measurement applications makes True Flex 316 the trusted choice for mission-critical RF systems.

Specification

Physical Properties

Item	Material	Diameters (mm)
Inner Conductor	Stranded Silver Plated Copper	7/0.18
Dielectric	Solid PTFE	1.60
Inner Shield	Spiral Silver Plated Copper Strip	1.80
Outer Braid	Round silver plated copper	2.16
Jacket	FEP	2.92

Electrical Properties

Capacitance (pF/m)	29.0
Impedance (Ohms)	50
Velocity of Propagation (%)	70
Max. Operating Frequency (MHz)	18000
Bend Radius (mm)	15.24
Temperature Range (℃)	-55~+105

Attenuation

Frequency (MHz)	Attenuation (dB/m)
400	0.433
1000	0.696
3000	1.240
5000	1.631
10000	2.389
18000	3.331

Product Detail

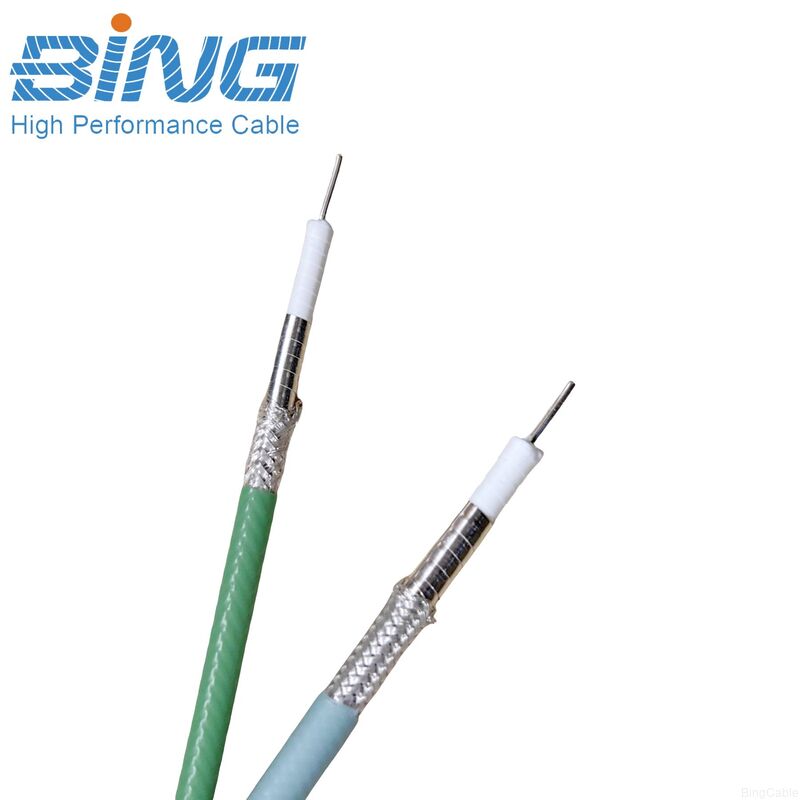

50 Ohm True-Flex316 Spiral Strip Coax FEP Jacket for Equipment Test 0

50 Ohm True-Flex316 Spiral Strip Coax FEP Jacket for Equipment Test 2
