Product Details
Place of Origin: Shanghai, China
Brand Name: Bing Wire & Cable
Certification: ISO, RoHS
Model Number: HRF 155DS-LL
Document: HRF155DS-LL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1000ft
Price: $0.11-0.33 / ft
Delivery Time: 10-15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000ft 7days
|
Type:
|
Medical Coaxial Cable
|
Inner Conductor:
|
High Strength Silver Plated Copper Alloy
|
Insulation:
|
Low Density PTFE
|
Outer Conductor:
|
Copper Foil+ Silver-plated Wire Braided
|
Jacket:
|
Clear FEP
|
Impedance:
|
50 Ohm
|
Voltage Rated:
|
1000V
|
Operating Temperature:
|
-55°C~+200℃
|
|
Type:
|
Medical Coaxial Cable
|
|
Inner Conductor:
|
High Strength Silver Plated Copper Alloy
|
|
Insulation:
|
Low Density PTFE
|
|
Outer Conductor:
|
Copper Foil+ Silver-plated Wire Braided
|
|
Jacket:
|
Clear FEP
|
|
Impedance:
|
50 Ohm
|
|
Voltage Rated:
|
1000V
|
|
Operating Temperature:
|
-55°C~+200℃
|

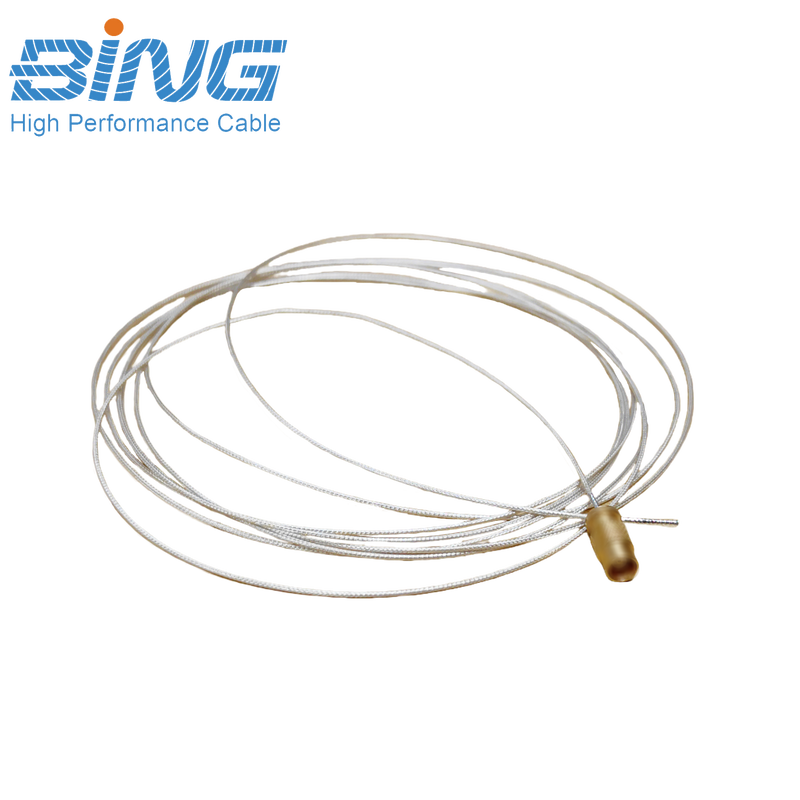

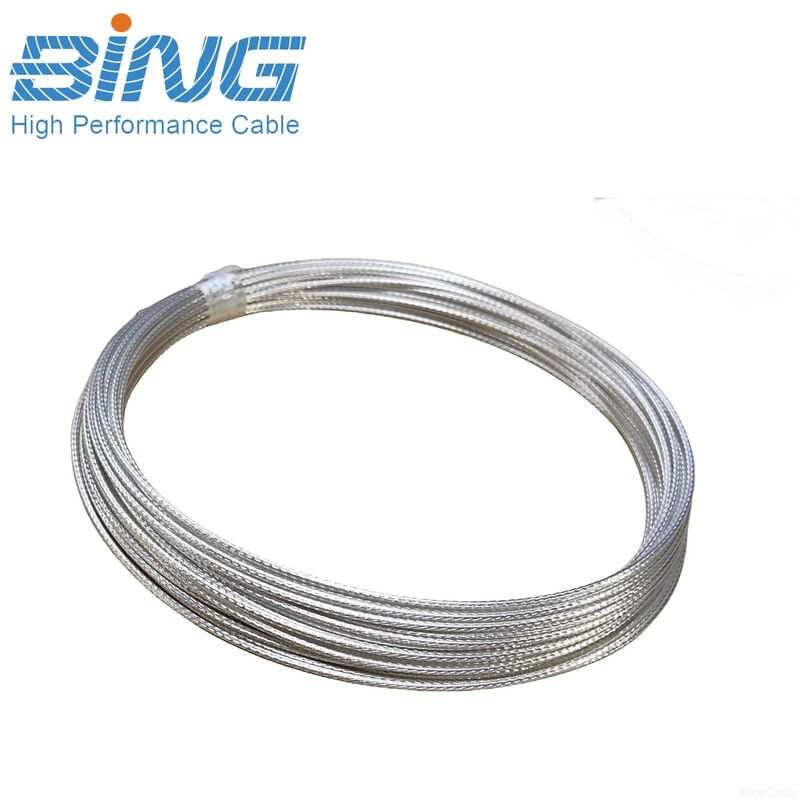

Our HRF155DS-LL Medical Coaxial Cable is a high-performance, ultra-miniature 50ohm RF coaxial cable from Baiyin Cable, engineered for precision signal transmission in space-constrained, high-reliability environments. With an ultra-slim outer diameter of just 1.55mm, this cable is designed to meet the demanding needs of medical devices, aerospace electronics, and industrial micro-systems where size, flexibility, and signal integrity are critical.
Strong Inner Conductor – Made from silver-plated copper-clad steel, it resists breaking during medical procedures
Flexible Design – Bend radius as small as 10 mm allows easy navigation through blood vessels
Enhanced Device Longevity – Medical-grade fluoropolymer materials withstand repeated sterilization cycles without degradation.
Immediate Quality Verification – Transparent FEP jacket allows clinicians to visually confirm cable integrity before each procedure
Heat Resistant – Works reliably from -55°C to +200°C, preventing device failure during high-power microwave ablation
Excellent Signal Transmission – Delivers microwave energy precisely with minimal loss
The HRF155DS-LL stands out as a cost-effective, high-quality alternative to premium imported medical coaxial cables. It combines the miniaturization and performance required for cutting-edge applications with the reliability and compliance needed for regulated industries like healthcare and aerospace. Whether you are designing a new medical device or upgrading an industrial sensor, the HRF155DS-LL medical coax provides the perfect balance of size, performance, and value.
| Item | Material | Diameters (mm) |
|---|---|---|
| Inner Conductor | High Strength Silver plated cooper alloy | 1/0.32 |
| Insulation | Low Density PTFE | ---- |
| Outer Conductor | Copper Foil+ silvered wire braided | 1.35 |
| Jacket | Clear FEP | 1.55Max |
| Capacitance (pF/m) | 86 |
| Impedance (Ohms) | 50 |
| Velocity of Propagation (%) | 75 |
| Min. Bend Radius (mm) | 10 |
| Voltage Rating(VMS) | 1000 |
| Max Operating Frequency (MHz) | 3000 |
| Temperature Range (℃) | -55~+200 |
| Frequency (MHz) | Attenuation (dB/m) |
|---|---|
| 2450 | 1.750 |
| 6000 | 2.850 |
