Product Details
Place of Origin: Shanghai, China
Brand Name: Bing Wire & Cable
Certification: ISO9001, RoHS
Model Number: M16878/21
Document: M16878-21.pdf
Payment & Shipping Terms
Minimum Order Quantity: 500M
Price: Negotiable
Packaging Details: 500m/Coil
Delivery Time: 7-15 working days
Payment Terms: T/T,Paypal
Supply Ability: 5,000m/ 7 working days
|
Conductor Material:
|
Sliver Plated Copper
|
Conductor Type:
|
Solid Or Stranded
|
Insulation Material:
|
PTFE Tape
|
Size:
|
32~10 AWG
|
Rated Voltage:
|
600V
|
Working Temperature:
|
-60~200℃
|
Color:
|
Customized
|
Sample:
|
Provided
|
|
Conductor Material:
|
Sliver Plated Copper
|
|
Conductor Type:
|
Solid Or Stranded
|
|
Insulation Material:
|
PTFE Tape
|
|
Size:
|
32~10 AWG
|
|
Rated Voltage:
|
600V
|
|
Working Temperature:
|
-60~200℃
|
|
Color:
|
Customized
|
|
Sample:
|
Provided
|

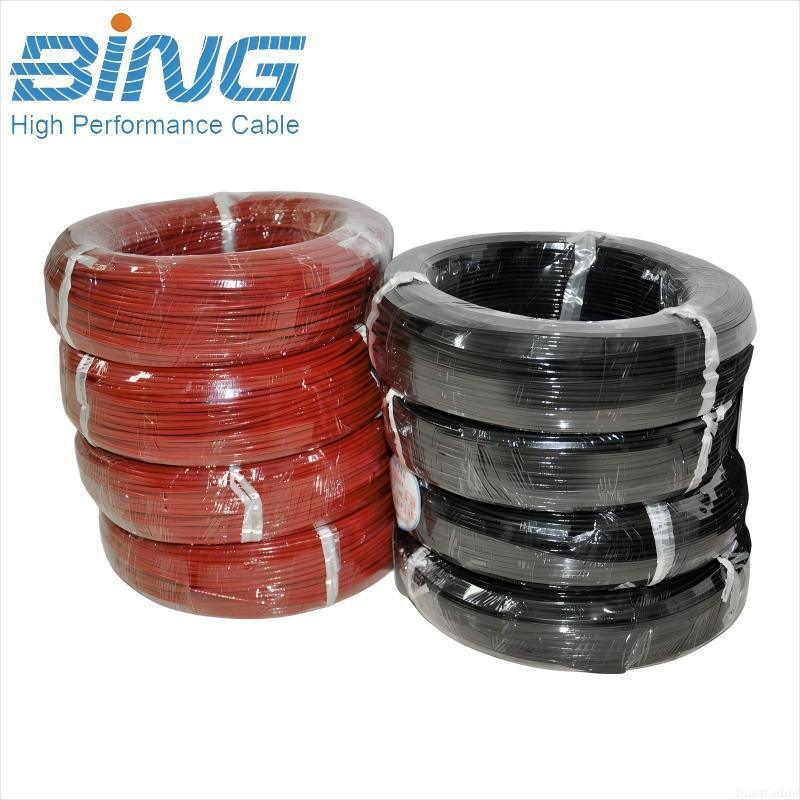

MIL-W-16878/21 PTFE insulated equipment wire is a 600V, tape-wrapped aerospace hook-up wire built to MIL-W-16878/21 and NEMA HP-3 TYPE E. It uses a silver-plated copper stranded conductor with sintered PTFE tape insulation, delivering medium-wall construction, high dielectric strength, and reliable performance in demanding internal wiring applications.
For engineers comparing options in the MIL-W-16878 family, M16878/21 wire sits between thin-wall and extruded constructions. It offers higher voltage capability than M16878/20 and greater flexibility than extruded M16878/4, making it a practical choice when 600V rating and routability both matter.
600V AC rating: Medium-wall PTFE insulation supports higher voltage equipment wiring.
-60°C to +200°C operation: Suitable for continuous high-temperature use, with short-term tolerance up to 300°C.
Tape-wrapped PTFE construction: More flexible than extruded PTFE, easier to route in dense harnesses.
Silver-plated copper conductor: Provides good conductivity, solderability, and high-temperature performance.
Self-extinguishing insulation: PTFE does not melt or drip in flame and supports safer equipment design.
Strong chemical and moisture resistance: Resists acids, alkalis, solvents, UV, ozone, and humidity.
Stable electrical performance: High dielectric strength, low dielectric loss, and high volume resistivity.
| Parameter | Detail |
|---|---|
| Specification | MIL-W-16878/21 / NEMA HP-3 TYPE E |
| Wire Type | PTFE insulated equipment wire / tape-wrapped aerospace hook-up wire |
| Conductor | Silver-plated copper, stranded |
| Insulation | PTFE tape-wrapped and sintered |
| Wall Type | Medium-wall |
| Rated Voltage | 600V AC |
| Temperature Range | -60°C to +200°C continuous |
| AWG Range | Typically 32–10 AWG, custom sizes available |
| Colors | Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White |
*Manufactured to MIL-W-16878/21 construction requirements
*Full traceability and consistent batch quality
*Available in multiple AWG sizes and strand constructions
*Custom colors, cut lengths, striping, and packaging
*Fast quotations and worldwide shipping
*Technical support for substitution, cross-reference, and specification confirmation
MIL-W-16878/21 PTFE insulated equipment wire is commonly specified for internal wiring and equipment hook-up where voltage, temperature, and reliability requirements exceed ordinary hook-up wire.
*Aerospace equipment wiring and avionics harnesses
*Defense and government communication systems
*Industrial control panels and high-temperature equipment
*Power supplies, transformers, and instrumentation
*Medical devices requiring chemical resistance and thermal stability
*Test equipment and precision measurement systems
A: MIL-W-16878/21 is a 600V PTFE insulated equipment wire with tape-wrapped insulation and a silver-plated copper stranded conductor. It is widely used for aerospace, industrial, and high-reliability equipment wiring.
A: Yes. M16878/21 is the common short designation for MIL-W-16878/21.
A: M16878/21 is rated for 600V AC, making it suitable for equipment wiring that requires higher voltage capability than thin-wall 250V types.
A: M16878/21 uses medium-wall tape-wrapped PTFE and is rated for 600V, while M16878/20 uses thin-wall tape-wrapped PTFE and is rated for 250V.
A: Both are 600V, but M16878/21 is tape-wrapped and generally more flexible, while M16878/4 is extruded PTFE with a more uniform wall.
A: Yes. The standard silver-plated copper version supports continuous operation from -60°C to +200°C.
A: Yes. PTFE tape-wrapped insulation resists soldering temperatures without melting or shrinking.
A: We typically supply 32–10 AWG. Custom strand constructions and other sizes can be quoted on request.
A: Yes. We support standard colors, custom color matching, striping, cut-to-length, and special packaging.
A: RoHS-compliant options are available. Please confirm your requirement when requesting a quote.
If you are sourcing MIL-W-16878/21, M16878/21, or 600V tape-wrapped aerospace hook-up wire, send us your AWG size, conductor construction, color, length, and quantity. We will reply with pricing, lead time, and datasheet support.
