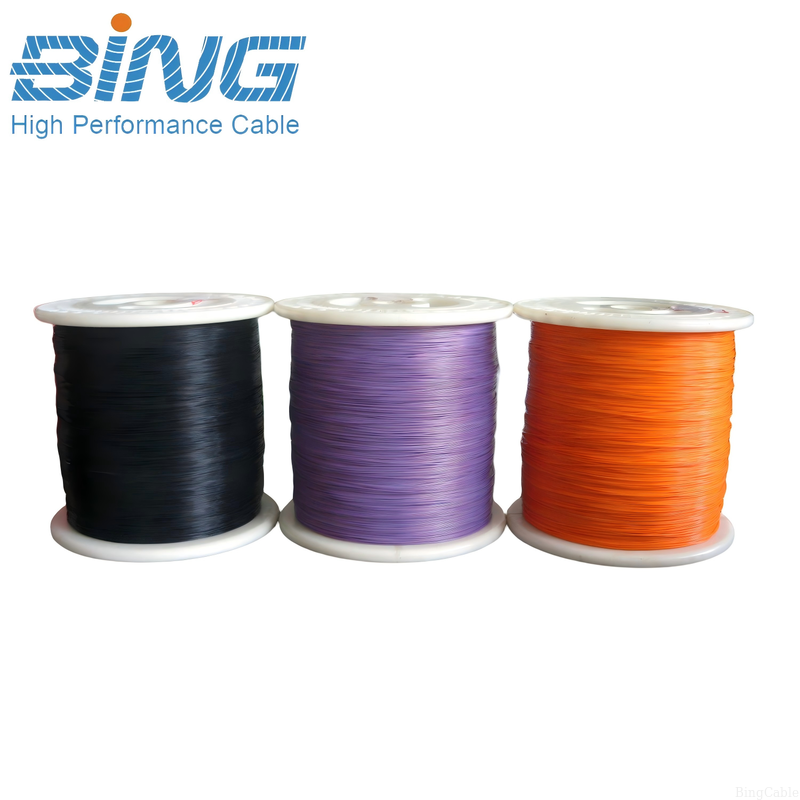

M16878/23 250V Thin-Wall Extruded PTFE Insulated 20AWG Nickel Plated Copper Wire

Name: M16878/23 250V Thin-Wall Extruded PTFE Insulated 20AWG Nickel Plated Copper Wire
Brand: Shanghai Bing Wire & Cable Co., Ltd.
SKU: M16878/23
Price: negotiable USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: Bing Wire & Cable

Certification: ISO9001, RoHS

Model Number: M16878/23

Document: M16878-23.pdf

Payment & Shipping Terms

Minimum Order Quantity: 500M

Price: Negotiable

Packaging Details: 500m/Coil

Delivery Time: 7-15 working days

Payment Terms: T/T,Paypal

Supply Ability: 5,000m/ 7 working days

Get Best Price

Chat Now

Product Details

Product Description

Highlight:

Conductor Material:	Nickel Plated Copper	Conductor Type:	Solid Or Stranded
Insulation Material:	Extruded PTFE	Size:	38~20 AWG
Rated Voltage:	250V	Working Temperature:	-60~260℃
Color:	Customized	Sample:	Provided

Conductor Material:	Nickel Plated Copper
Conductor Type:	Solid Or Stranded
Insulation Material:	Extruded PTFE
Size:	38~20 AWG
Rated Voltage:	250V
Working Temperature:	-60~260℃
Color:	Customized
Sample:	Provided

M16878/23 250V Thin-Wall Extruded PTFE Insulated 20AWG Nickel Plated Copper Wire

Product Overview

MIL-W-16878/23 is a 250V thin-wall extruded PTFE insulated wire with a nickel plated copper conductor, equivalent to NEMA HP-3 Type ET. This M16878/23 mil-spec wire is designed for high-temperature internal wiring where space, weight, and thermal endurance are critical. Unlike silver-plated versions rated to 200°C, the nickel plated copper construction supports continuous operation up to 260°C, making it suitable for harsh thermal environments.

The extruded PTFE insulation provides a uniform, smooth wall with excellent dielectric strength, chemical resistance, and solder-iron resistance, while the thin-wall design keeps the outer diameter small for dense equipment wiring.

Key Features and Benefits

*250V AC rating: Thin-wall extruded PTFE insulation meets NEMA HP-3 Type ET voltage class.

*Up to 260°C continuous: Nickel plated copper conductor enables higher temperature operation than silver-plated 200°C types.

*Extruded PTFE insulation: Uniform wall thickness with strong abrasion resistance and consistent dielectric performance.

*Lightweight thin-wall build: Smaller OD helps save space in compact harnesses and high-density assemblies.

*Excellent chemical resistance: PTFE resists solvents, oils, acids, moisture, UV, and ozone.

*Solder-resistant insulation: Holds up under soldering heat without melting or shrinking.

*Stable electrical properties: High dielectric strength, low dielectric loss, and high volume resistivity.

Technical Specifications

Parameter	Detail
Specification	MIL-W-16878/23 / NEMA HP-3 TYPE ET
Wire Type	250V thin-wall extruded PTFE insulated wire
Conductor	Nickel plated copper, stranded or solid
Insulation	Extruded PTFE
Wall Type	Thin-wall
Rated Voltage	250V AC
Temperature Range	Up to 260°C continuous with nickel plated copper
Example Size	38-20 AWG
Colors	Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White

Typical Applications

M16878/23 250V thin-wall extruded PTFE wire is commonly used in high-temperature equipment where 200°C silver-plated wire may not be sufficient.

*High-temperature electronic equipment and instrumentation

*Aerospace and avionics internal wiring

*Power supplies, transformers, and control modules

*Industrial heating systems and sensor wiring

*Test equipment and laboratory instruments

*Mili tary and defense communication hardware

Frequently Asked Questions (FAQ)

Q: What is MIL-W-16878/23 wire?A: MIL-W-16878/23 is a 250V thin-wall extruded PTFE insulated wire with a nickel plated copper conductor, equivalent to NEMA HP-3 Type ET.

Q: What temperature can M16878/23 withstand?A: With a nickel plated copper conductor, it supports continuous operation up to 260°C, higher than the 200°C rating of silver-plated PTFE types.

Q: Is M16878/23 the same as NEMA HP-3 Type ET?A: Yes. M16878/23 corresponds to NEMA HP-3 Type ET for thin-wall extruded PTFE insulated wire.

Q: How does M16878/23 differ from M16878/24?A: Both are 250V nickel plated copper types, but M16878/23 uses extruded PTFE, while M16878/24 uses tape-wrapped PTFE. Extruded insulation offers a more uniform wall; tape-wrapped construction is generally more flexible.

Q: Can M16878/23 be used at 20AWG?A: Yes. 20AWG is a commonly available size. We can quote other AWG sizes, strand constructions, and insulation diameters on request.

Q: Is this wire suitable for soldering?A: Yes. Extruded PTFE insulation resists soldering temperatures without melting or shrinking.

Get a Quote for M16878/23 Wire

If you need MIL-W-16878/23, M16878/23, or NEMA HP-3 Type ET 250V PTFE wire, please share your AWG size, conductor construction, color, length, and quantity. We will confirm specifications, pricing, and lead time.
