TH-SPC Polyimide Taped Wire 600V for Satellite Wiring Engine Bay Harnessing

Product Details

Place of Origin: Shanghai, China

Brand Name: Bing Wire & Cable

Certification: CE/ROHS

Model Number: TH-SPC

Document: TH-SPC(extruded PTFE-PI, 60...0V.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2000 meters

Price: $12.36-52.82 / meter

Delivery Time: 10-15 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 2000m 7work days

Chat now
Highlight:
Conductor:
Electrolytic Silver Plated Annealed Copper
Insulation Material:
Extruded PTFE
Jacket:
FP/ Polyimide/ FP Tape Wrapped And Sintered
Rated Voltage:
600V
Rated Temperature:
-90°C~+200°C
Application:
Satellite Wiring/Engine Bay Harnessing/Mili Tary Aviation
Color:
Customized Color
Packing:
As Requirement
Conductor:
Electrolytic Silver Plated Annealed Copper
Insulation Material:
Extruded PTFE
Jacket:
FP/ Polyimide/ FP Tape Wrapped And Sintered
Rated Voltage:
600V
Rated Temperature:
-90°C~+200°C
Application:
Satellite Wiring/Engine Bay Harnessing/Mili Tary Aviation
Color:
Customized Color
Packing:
As Requirement
TH-SPC Polyimide Taped Wire 600V for Satellite Wiring Engine Bay Harnessing
Product Description

TH-SPC polyimide taped wire is a lightweight aerospace wire with a silver-plated copper core, featuring PTFE extruded + fluororesin-coated polyimide film composite insulation and a rating of 600V AC. It is equivalent to M22759/28 and engineered for demanding aerospace.

  • Conductor: electrolytic silver plated annealed copper
  • Insulation: Extrude PTFE
  • Jacket: FP/ Polyimide/ FP tape wrapped and sintered
  • Operating Temperature: -90~+200℃.
  • Rated Voltage: AC 600V.
  • Insulation Thickness: 0.23~0.37 mm.
  • Standard Colors: Black, brown, red, orange, yellow, green, blue, purple, gray, white (custom colors available).
  • Multi-core Cables: Twisted pair, three-core stranded, four-core stranded, etc. (with/without sheath, with/without shielding optional).
Key Features
  • Wide Temperature Range: Reliable operation from -90°C to +200°C
  • High-Conductivity Silver-Plated Copper: Available in both annealed electrolytic copper and high-strength copper alloy variants
  • Ultra-Thin Wall Design: 0.23mm polyimide taped & PTFE insulation thickness for weight reduction without compromising dielectric strength
  • Flame Retardant: Low flame propagation properties meeting stringent aerospace requirements
  • Chemical Resistance: Excellent resistance to aviation fuels, hydraulic fluids, and lubricants
  • Laser Markable Surface: Permanent identification for traceability and maintenance
  • Multiple Configuration Options: Twisted pairs, triples, quads, with or without shielding/jacketing
Applications
  • Test & Measurement: Precision-grade wiring for instrumentation and calibration equipment
  • Mi litary Aviation: Rated for mission-critical systems in tactical and combat environments
  • Hostile Environments: Chemically resistant and thermally stable for extreme operating conditions
  • Medical Devices: Specialized equipment requiring biocompatible materials
  • Commercial Aviation: Ideal for internal wiring of avionics suites, flight control modules, and aerospace systems
Why Choose Our Polymide Taped Wire?

Our TH-SPC Polyimide & PTFE composited insulated wire is designed for the harshest environments and extreme conditions. This silver plated copper wire may be used in commercial or mi litary aircraft where wire applications must adhere to strict restrictions and specifications. As a professional Electrolytic silver-plated copper cable, our polyimide taped wire meets the strictest requirements for small dimensions, high-temperature resistance, low weight, and flame retardant, making it the top choice for Aerospace communication cable and mission-critical aerospace wiring.

Technical Specifications
PART NUMBER
AW

CONSTRUCTION
(mm )
CONDUCTOR
NOMNAL
(mm)

NOMNAL AREA
( mm2)

OMNAL  RESISTANCE
( Ω / 100m)
INSULATED WIRE
NOMNAL
   (mm)
APPROX. WEIGHT
( g/m)
TH 2801 28  1/ 0.320 0.320  0.081  21  0.80  1.9
TH 2807 28  7/ 0.127 0.381  0.088  20  0.86
TH 2601 26  1/ 0.403 0.403  0.13  13  0.89  2.79
TH 2619 26  19/ 0.102 0.504  0.15  12  0.99  2.85
TH 2401 24  1/ 0.510 0.510  0.21  8.5  1.00  3.70
TH 2419 24  19/ 0.127 0.634  0.24  7.5  1.11  3.87
TH 2201 22  1/ 0.644 0.644  0.33  5.3  1.22  5.32
TH 2219 22  19/ 0.160 0.800  0.38  4.7  1.27  5.44
TH 2001 20  1/ 0.812 0.812  0.52  3.3  1.30  7.92
TH 2019 20  19/ 0.203 1.009  0.62  2.9  1.49  8.03
TH 1819 18  19/ 0.254 1.269  0.96  1.9  1.75  11.96
TH 1619 16  19/ 0.300 1.500  1.34  1.4  1.91  14.68
TH 1419 14  19/ 0.361 1.803  1.94  0.92  2.31  22.13
TH 1219 12  19/ 0.455 2.270  3.10  0.6  2.81  34.19
TH 1037 10  37/ 0.404 2.800  4.74  0.4  3.54  52.32
Product Detail

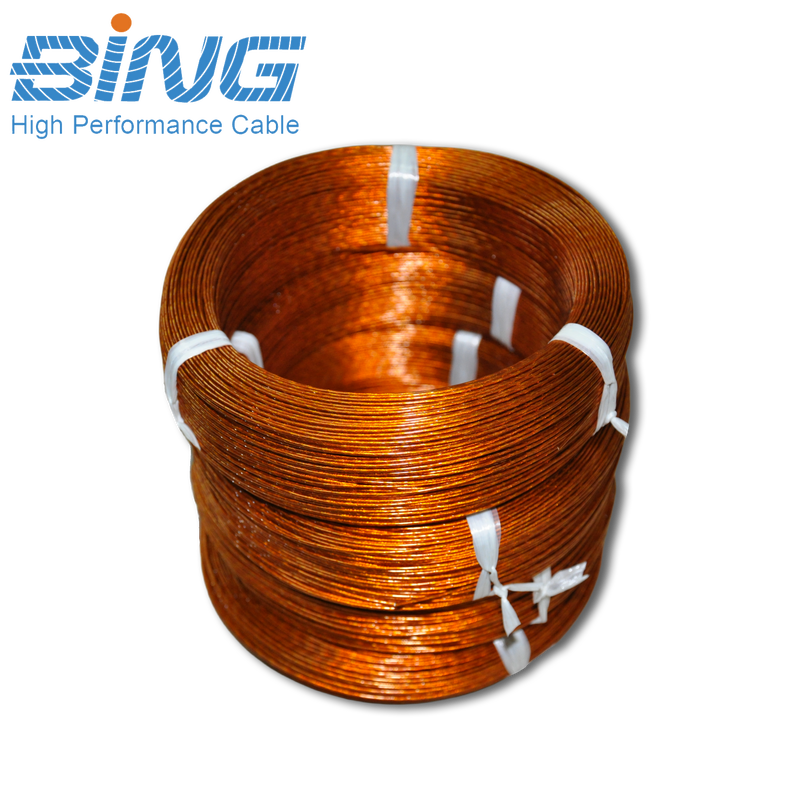

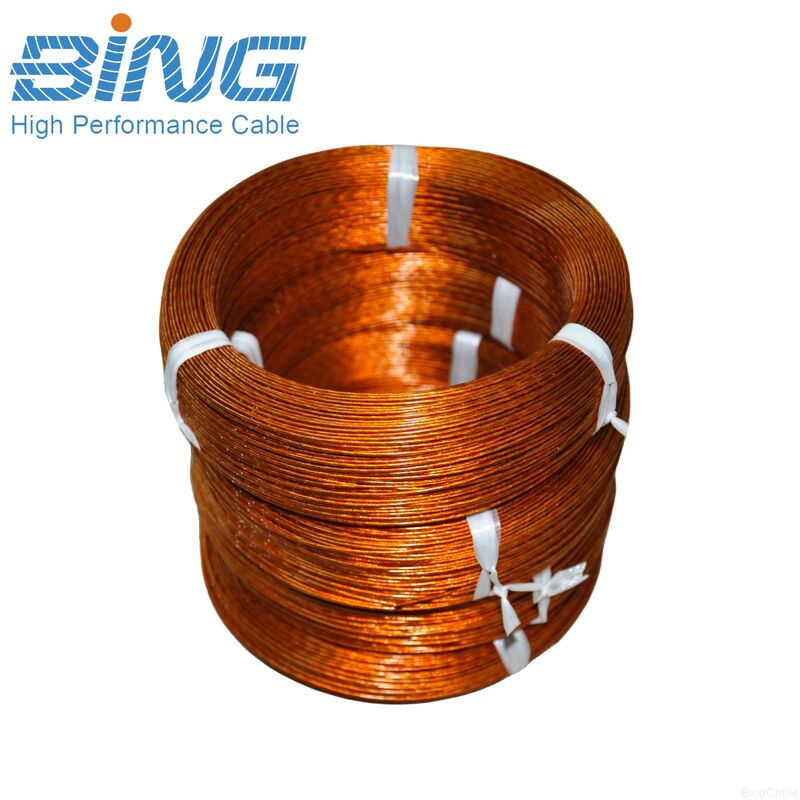

TH-SPC Polyimide Taped Wire 600V for Satellite Wiring Engine Bay Harnessing 0TH-SPC Polyimide Taped Wire 600V for Satellite Wiring Engine Bay Harnessing 1

TH-SPC Polyimide Taped Wire 600V for Satellite Wiring Engine Bay Harnessing 2TH-SPC Polyimide Taped Wire 600V for Satellite Wiring Engine Bay Harnessing 3
